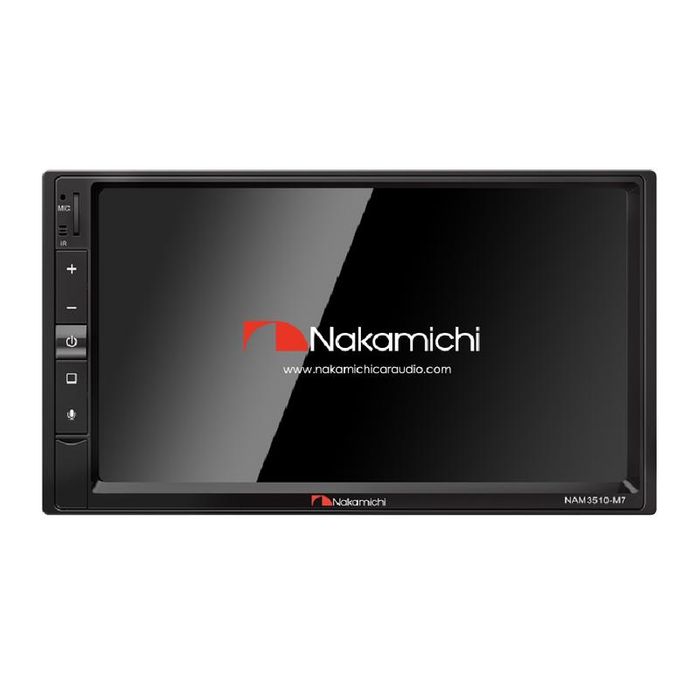

NAKAMICHI HEAD UNIT NAM3510 CARPLAY/ANDROID AUTO DOUBLE DIN
Description
The Nakamichi NAM3510-M7 is a powerful new unit to the New Zealand market. As a mid-range unit, it offers an impressive array of features and inclusions. Add to that the performance and quality it delivers them. The Nakamichi NAM3510-M7 really is an impressive unit at an amazing price-point.
Packed with a quality 7-inch touchscreen, wired Apple CarPlay and Android Auto, a full complement of DSP features including a 16-band EQ, digital time alignment, front mounted USB and SD card inputs, high resolution FLAC support, rear camera input, learning steering wheel interface and so much more in a double DIN package suitable for installation into most late model vehicle.
Expansion is also no problem with the NAM3510-M7 also boasting high voltage 4V pre-outs for front, rear and subwoofer channels, making it ideal for commanding an expansive system. Best of all the Nakamichi NAM3510-M7 is positioned at the affordable end of the category, putting the full spectrum of obligatory features and functions within reach of all but the most price conscious of consumers.
Features:
• Apple CarPlay via Front USB
• Android Auto via Front USB
• 6.8" 800x480 Touch-Screen Display
• Mechless Unit (No CD/DVD Player)
• Built-in Bluetooth with Audio Streaming
• Built-in Microphone (external microphone compatible)
• Front Micro SD Card Input
• Front 1A USB Input (Apple CarPlay / Android Auto / USB)
• Rear USB Input (USB Drives Only)
• ISO Connectors (see install notes)
• Shallow Mount (128mm)
• RGB Button Illumination
• MP3/WMA/FLAC/MPEG4/MKV/FLV/DIVX/H264 Playback
• Supports 640x480, 1280x720, 1920x1080 Video Resolutions
• Rear Audio/Video Input (use AUX2 for 3.5mm input)
• Rear Reverse Camera Input
• Rear Video Output (x2)
• RCA Audio Output (2 Pair)
• Subwoofer RCA Output
• RDS
Specifications:
- Operation votage 14.4V(10.5-16V)
- Product size 178×100×128MM
- Panel Installation Size 178×100mm 170×96mm
- Net weight 900g
- Size 7''
- Resolution 800×480RGB
- Contrast ratio 500
- Brightness 500nit
- Communication system BT 4.0 +EDR
- Frequency band 2.4GHZ
- Max Range 5m
- Max Power 4×50W
- Pre-output(V) 4V/10KO
- Pre-output impedance =600O
- Speakers impedance 4-8O
- External Video Input system NTSC/PAL/SECAM
- External Video Input 1VP-P/75O
- VIDEO FORMAT H264/MP4/AVI/MKV/FLV
- AUDIO FORMAT MP3/APE/AAC/FLAC
- USB Readable/chargeable(5±0.25V/1A)
- FM Frequency 87.5-108.0MHZ
- AM Frequency 522-1620KHZ
