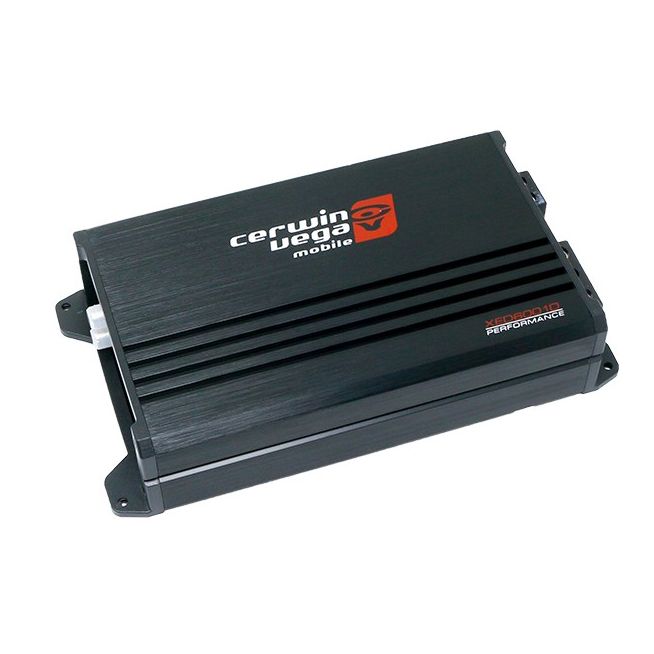

CERWIN VEGA AMPLIFIER XED SERIES MONO 320W RMS @ 4OHM / 600W RMS @ 2OHM
Description
1 Channel XED Series Amplifier / 600W MAX
Features:
- Latest High-Efficiency Class D Topology
- Compact Size with Ambient backlit logo
- RCA "Pass Thru" output for easy system expansion
- Fully Variable Crossovers (12dB per octave)
- Handles HI and LO level input to 12V
- 2O Stable Stereo and 4O Mono (CH3/4) for 3 Ch mode
- Proprietary Vega Bass Boost EQ Up To 12dB
Specifications:
- Max Power: 600W MAX
- RMS Power @ 2 ohm: 1 x 600W
- RMS Power @ 4 ohm: 1 x 320W
- Type: Class D
- Power Supply: Full PVM
- Power Supply Threshold: 10.0DVC - 16.0DVC
- Idle Current: (0.7A)
- THD 4 (100Hz @4O): <0.1%
- S-N Rario (A weighted @ 1W): -85dBA
- S-N Rario (A weighted @ 1W): -101.1dBA
- Sensitivity-Low Input Level: 250mV - 6.0V
- Sensitivity-High Input Level: 1.1V ~> 20.0V
- Impedance-Low Input Level: 20 KO
- Impedance-High Input Level:100 KO
- Output Impedance: 2 Ohm
- Damping Factor (50Hz @ 4O): >70
- Bandwith (-3dB): 10Hz - 250Hz
- Crossover (-12dB/Oct) Varile High Pass: N/A
- Crossover (-12dB/Oct) Varile Low Pass: 35Hz-250Hz
- Crossover (-12dB/Oct) Varile Sub-Sonic: 10Hz – 50Hz
- Fuse Rating ATC (inside): 2x 30A
- Dimensions: 7.1" x 4.7" x 1.8" (180mm x 120mm x 46.5mm)
