REVERSE CAMERA UNIVERSAL SURFACE MOUNT ADJUSTABLE ANGLE (NTSC)
Your Price:
$149.95 inc GST
SKU:
CAM-22
Stock Level
SPECIAL ORDER ONLY
Description
Description

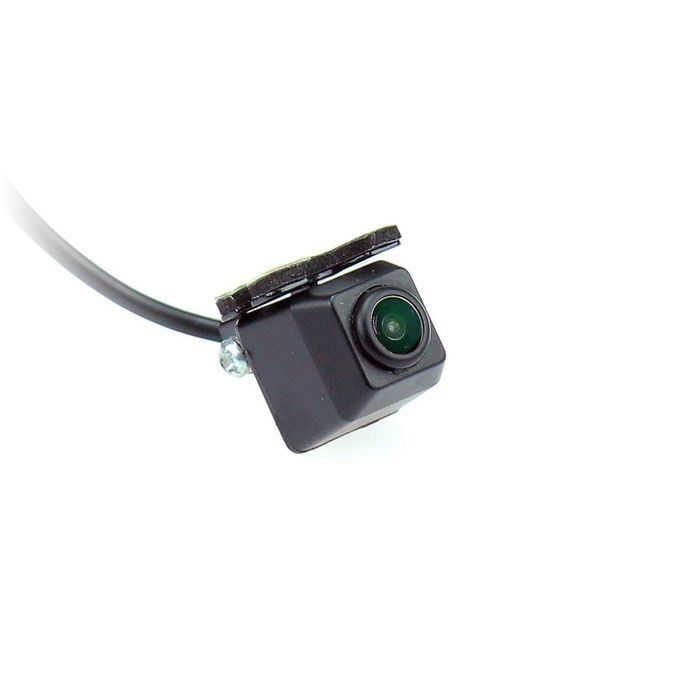

The CAM-22 is a universal surface mounted reversing camera with vertical alignment, compatible with a wide range of vehicles both cars and vans. Minimal illumination is required for the camera to operate with a 170 degree viewing angle. This easy-fit rear-view camera’s 1099 HD CCD, 480 TV Lines and 976x496pix resolution allow for a full-colour high-res image display. The CAM-22 is also IP68 rated, meaning it is protected against all standard weather conditions and will continue to operate in temperatures ranging from -20 degrees C to +70 degrees C.
Product Specifications
- Image Sensor: 1099 HD-CCD
- TV Lines: 560
- Resolution: 976 x 496
- Minimum Illumination: 0.1 Lux
- TV System: NTSC
- Waterproof Rating: IP68
- Horizontal Angle: 170 Degrees
- Vertical Angle: 120 Degrees
- Parking Lines: Yes (Removable)
- Adjustable Image: Yes (Mirror/Normal
- Enhanced Performance In Low Light: Yes
- Video Output: 1.0V p-p 75ohm
- Operating Voltage: 12V DC (Negative Ground)
- Current Consumption: 120mA @ 13.8V
- Operating Temperature: -20 Degrees C to +70 Degrees C
