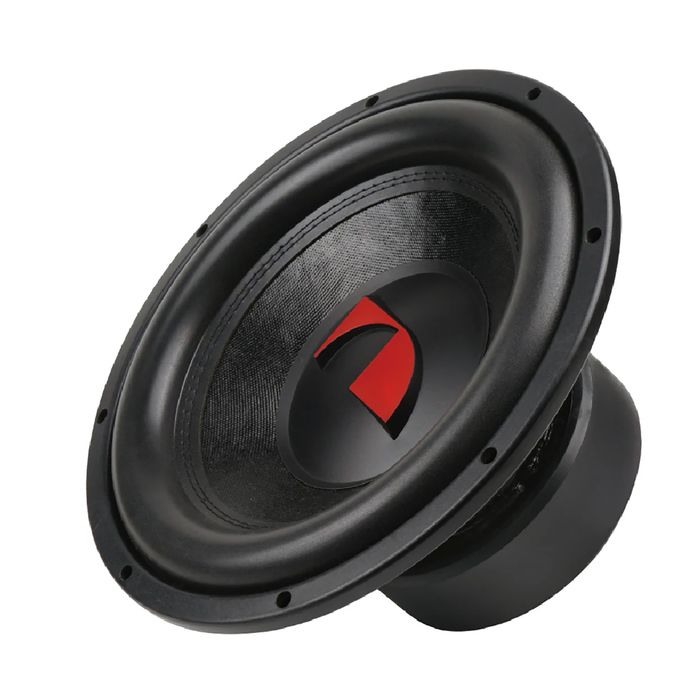

NAKAMICHI 12" DVC SUBWOOFER 2000W - DUAL 2 OHM - 600W RMS
Your Price:
$174.95 inc GST
SKU:
NSW-Z1206D2
Stock Level
Pre Order Now
Description
Specifications
Nominal Diameter:12”(310mm)
Nominal Impedance:2+2 ohms
PMS Power:600W
Peak Power:2000W
Depth:150mm
Sensitivity:85.4±3dB
Frequency Range:45-1.3kHz
Voice Coil Diameter:ASV 60mm
Voice Coil Length:40mm
Air Gap Height:8mm
Resonant Frequency, Fs:30.3±3Hz
D.C Voice Coil Resistance, Re:2 ohm
Mechanical Quality Factor, Qms:3.26
Electrical Quality Factor, Qes:0.78
Total Quality Factor, Qts:0.63
Equivalent Air Volume to Cms, Vas:63 MPL
Mechanical Compliance, Cms:176 M/N
BL Factor, BL:8.6 N/A
Effective Surface Area, Sd:50.2mm
Linear Excursion, Xmax:16mm
Basket:Die Cast Iron
Cone:Paper
Dust Cap:Paper
Surround:Treated Foam
Voice Coil Wire:EISV
Voice Coil Bobbin:BASV
Magnet Mass:160X20,
Magnet Material:Ferrite
