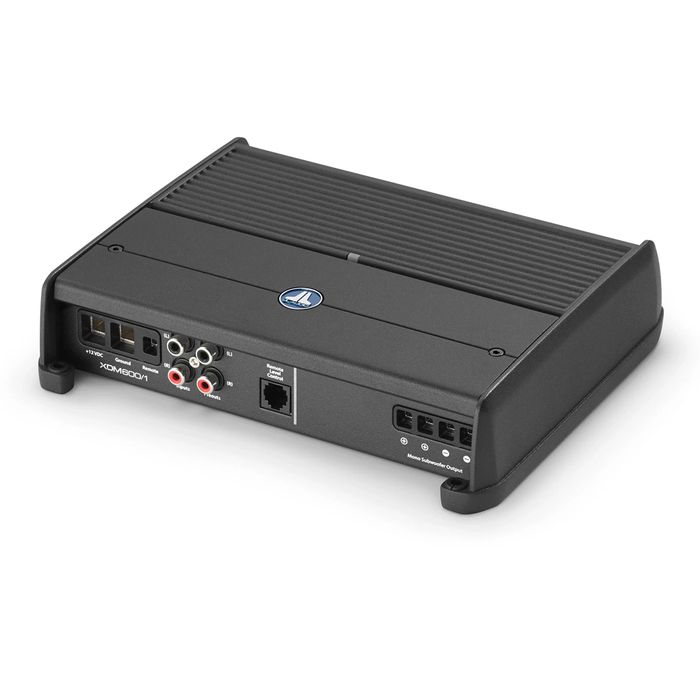

JL AUDIO XDM600/1 MONOBLOCK CLASS D FULL RANGE CAR & MARINE AMPLIFIER 600 WATTS
Description
Monoblock Class D Car/Marine Subwoofer Amplifier, 600 W x 1 @ 2 O / 400 W x 1 @ 4 O - 14.4V
This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output from a very compact chassis. Don't let its small size fool you, though... the XDM/600/1 generates serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).
Designed for car or boat installations, the XDM600/1 is built with marine-grade materials and features an exclusive, dual-mode input filter for noise-free performance in boats or cars. Automatic turn-on capability (via signal sensing or DC-offset sensing) is also onboard for easy factory system upgrades.
Targeted specifically for subwoofer applications, the XDM600/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz. With the addition of an optional HD-RLC or MHD-RLC (water-resistant) remote level controller (each sold separately), the amplifier's level can be adjusted directly from the driver's seat or captain’s chair.
Finished in a sleek, black powder-coat, all controls are protected beneath a gasketed, removable top cover for easy access.
Rated Continuous (RMS) Power @ 14.4 V
@ 4 O 400 W RMS x 1
@ 3 O 500 W RMS x 1
@ 2 O 600 W RMS x 1
@ 1.5 O N/A
General Specifications
Frequency Response 7 Hz - 500 Hz (+0, -1dB)
S/N Ratio, referred to highest rated power >87 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
S/N Ratio, referred to 1 W >67 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Damping Factor @ 4 O >1000 / 50 Hz
Damping Factor @ 2 O >500 / 50 Hz
THD+N @ Rated Power <1% @ 2 O per Ch.
Input Voltage Range @ RCA Inputs 200 mV - 4 V RMS
Min.Copper Power / Ground Wire Gauge 4 AWG wire
Fuse Rating 50 A (AFS, AGU or MaxiFuse™)
