STINGER HEIGH10 FORD TRANSIT 2013 - 2021
Description

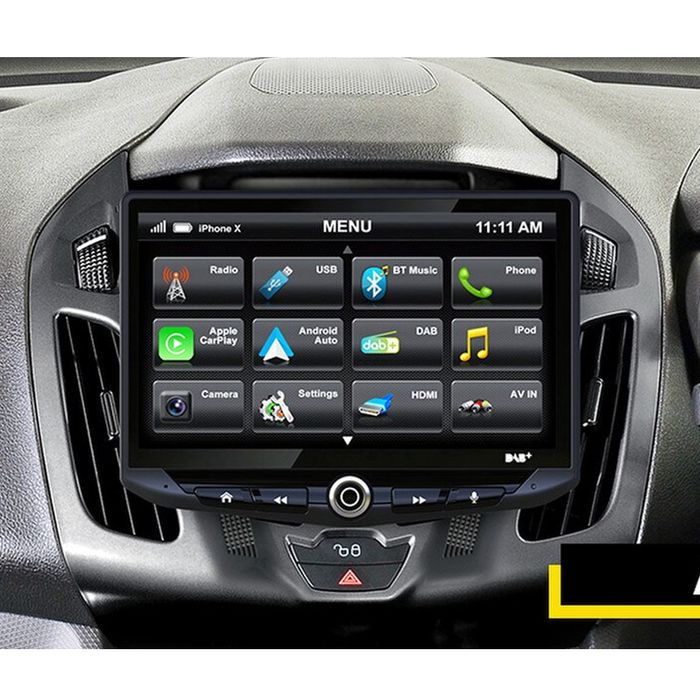

Upgrade your Ford Transit Connect’s radio with the HEIGH10 10-inch infotainment system. Retain the steering wheel control functionality in one easy-to-install, plug-and-play package. Please note: for vehicles without a top display..
KEY FEATURES
HEIGH10 - 10 INCH TOUCHSCREEN
Featuring a high-resolution, 10-inch capacitive touchscreen with 16.7 million colours for a full visual experience, the HEIGH10® is designed to enhance screen size and infotainment features for drivers. The display and main tuner box offer a modular design, bolstering installation flexibility in space-limited applications and in some cases, even where no installation dash kit is available.
The HEIGH10 features Anti-Glare and Anti-Reflection technology for the best outdoor visibility. Personalize your display with customizable RGB illumination to match factory illumination, or create your own.
INTEGRATION
• For bespoke installation into the vehicle, the dash kit and mounting included provide a factory look and feel when the HEIGH10 display is installed.
• The interface also provides more control over your Ford Transit Connect’s infotainment installation with camera triggers and steering wheel controls.
RETAINS
• Steering wheel control functionality
FEATURES
• Access to your smartphones music and navigation capabilities
• Apple CarPlay and Google Android Auto™
• DAB+ Digital Radio tuner
• AM/FM radio with PTY
• Built-in MicroSD card
• 2 USB rear inputs, 1.5-Amp output, HDMI input
• Handsfree Bluetooth 4.2 A2DP with aptX™ for handsfree calling and music streaming
SPECIFICATION
GENERAL
• Recording Resolution: 1024 x 600
• Screen Size: 10 inches
• Manufacturer's Warranty - Parts: 1 year
• Operating Voltage: 9.0VDC to 18VDC
• Grounding system; Negative Ground
• Max current consumption: 10A fused
DIMENSIONS
• Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
• Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)DISPLAY
• 10-inch Diagonal
• 16:9 aspect ratio
• 1024 x 600
• Pixels: 1,843,200
• Active area 222.72 (W) x 125.28 (H) mm
• Operating Temperature (C) -20° to 70°
AUDIO
• Load impedance: 4O nominal / 2O allowable
• Continuous power output: 25W x 4ch/4O 20Hz to 20KHz, 1%THD at 14.4V
• Audio output level (max): 4.0V preout
• EQ: (15-band) 25Hz/40Hz/63Hz/100Hz/160Hz/250Hz/400Hz/ 630Hz/1KHz/1.6KHz/2.5KHz/4KHz/6.3KHz/ 10KHz/16KHz
• Gain: ±12dB (2dB/step)
• HPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Subwoofer Preout LPF: 25Hz/40Hz/63Hz/80Hz/100Hz/160Hz/250Hz
• Slope: 6dB, 12dB, 18dB
• Gain: -14dB to 7dB (1dB/step)
• Phase: 0 or 180
• Speaker level: ±9dB (1dB/step)
• Time Alignment: 0 to 133 step (inch/ms)
FM TUNE
• 87.9MHz to 107.9MHz
• Usable sensitive 0dB (mono S/N: 30dB)
• SNR: 65dB
AM TUNER
• 530KHz to 1710KHz
• Usable sensitive 0dB (mono S/N:20dB)
• SNR 58dB
USB
• USB 2.0
• Max current supply 1.5A
• USB Class: MSC (Mass Storage Class), and MTP (Media Transfer Protocol)
• File system: FAT32, NTFS
BLUETOOTH
• V4.2 dual
• 4dBm Class2
• 2.4GHz to 2.48GHz
CAMERA(S) VIDEO INPUTS
• NTSC OR PAL video formats
HDMI INPUT
• Supported HDMI Resolutions: 640*480p, 720*480p, 1280*720p, 1920*1080i, 1920*1080p
TOSLINK (OPTICAL)
• Output: 48khz Variable
BACKGROUND IMAGE (USER)
• File Format: JPG / PNG
• Resolution: 1024 x 600
• File size is not limited
INCLUDED
• HEIGH10 10-inch touchscreen display/infotainment system
• Vehicle-matched radio mounting dash kit
• Complete the vehicle integration module
• Vehicle & radio specific plug-n-play harnessing
• AM/FM antenna adapter
• USB retention cable
• Stereo connection lead
