STINGER HEIGH10 FORD TRANSIT CONNECT 2013 - 2021
Description
Built for Stealth and Security
Up to Triple Camera Protection and Secure Recording Unit
The DR770X Box Pro is a triple-channel-capable dash cam with BlackVue Cloud connectivity.
The compact cameras connect via coaxial video cable to the lock-protected “Box” recording unit, which can be stowed away in a glove compartment for maximum stealth and security.
All cameras use Full HD Sony STARVIS™ image sensors for outstanding image quality under any light, and the infrared cameras can record clear videos in full darkness.
The wireless button lets you manually and safely bookmark videos (tagged as “Manual Event”) while driving.
Native Parking Mode support via included hardwiring cable.
View and download videos easily with the BlackVue App.
Cloud support via optional LTE Connectivity module or Wi-Fi hotspot.
• Up to Three Cameras and Secure Recording Box
• Standard Rear Camera
• Ultrawide Infrared Interior Camera
• AI-Powered Driver-Monitoring Camera
Color / Size / Weight:
Main unit : Black / Length 130.0mm x Width 101.0 mm x Height 33 mm / 209 g
Front : Black / Length 62.5mm x Width 34.3 mm x Height 34.0 mm / 43 g
Rear : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 33 g
Rear Truck : Black / Length 70.4mm x Width 56.6 mm x Height 36.1 mm / 157 g
Interior IR : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g
DMS : Black / Length 63.5 mm x Width 32.0 mm x Height 32.0 mm / 34 g:
EB-1 (Wireless Button) : Black / Length 45.2 mm x Width 42.0 mm x Height 14.5 mm / 23 g
Memory: microSD Card (64 GB/128 GB/256 GB/512GB)
Recording Mode:
Normal recording, Event recording (when impact is detected in normal and parking mode),
Manual recording and Parking recording (when motion is detected) * When using Hardwiring Power Cable,
ACC+ will trigger parking mode.When using other methods, G-sensor will trigger parking mode.
Camera:
Front: STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Rear/Rear Truck : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Interior IR/DMS : STARVIS CMOS Sensor (Approx. 2.1 M Pixel)
Resolution / Frame Rate:
Full HD (1920x1080) @ 60 fps - Full HD (1920x1080) @ 30 fps- Full HD (1920x1080) @ 30 fps
*Frame rate may vary during Wi-Fi streaming.
Video Codec: H.264 (AVC)
Image Quality (Mbps): Extreme: 16 + 10 + 10 Mbps / Highest: 12 + 10 + 10 Mbps
Video Compression: Mode MP4
Wi-Fi: Built-in (802.11 b.g.n)
GNSS: External (Dual Band : GPS, GLONASS)
Bluetooth: Built-in (V2.1+EDR/4.2)
LTE: External (Optional)
INTEGRATION

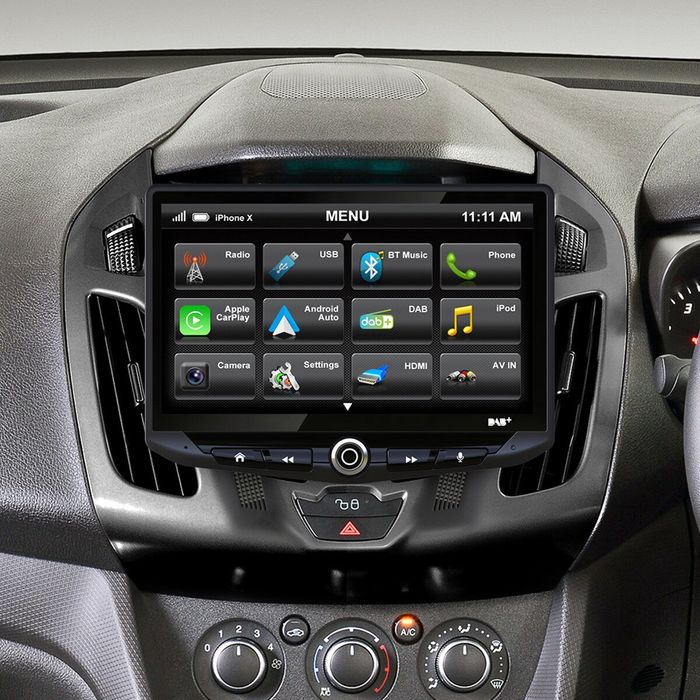

• For bespoke installation into the vehicle, the dash kit and mounting included provide a factory look and feel when the HEIGH10 display is installed.
• The interface also provides more control over your Ford Transit Connect’s infotainment installation with camera triggers and steering wheel controls.
DIMENSIONS
• Radio Module: 178 mm x100 mm x 116 mm (W x H x D)
• Display: 247.2 mm x 180.6 mm x 48.5 mm (W x H x D)DISPLAY
• 10-inch Diagonal
• 16:9 aspect ratio
• 1024 x 600
• Pixels: 1,843,200
• Active area 222.72 (W) x 125.28 (H) mm
• Operating Temperature (C) -20° to 70°
INCLUDED
• HEIGH10 10-inch touchscreen display/infotainment system
• Vehicle-matched radio mounting dash kit
• Complete the vehicle integration module
• Vehicle & radio specific plug-n-play harnessing
• AM/FM antenna adapter
• USB retention cable
• Stereo connection lead
