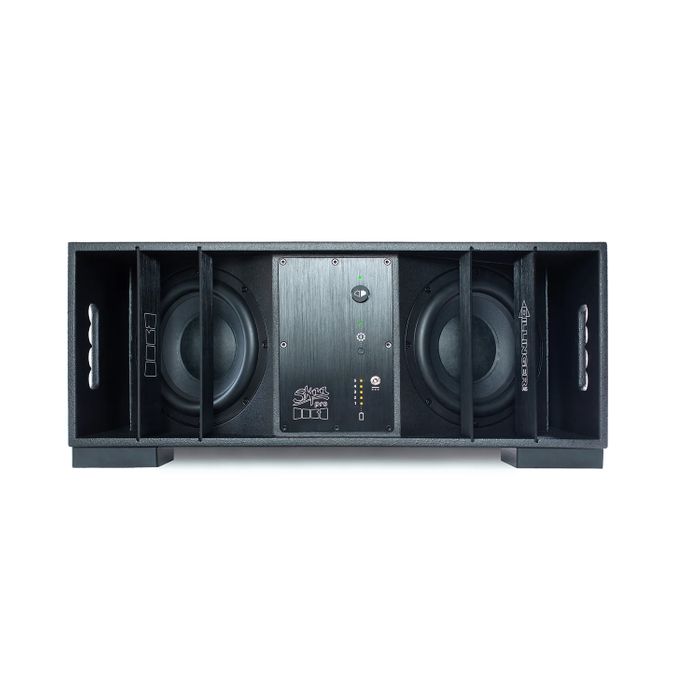

DILLINGER LABS DFB DEATH FROM BELOW SKAA PRO BATTERY POWERED DUAL 8" SUBWOOFER
Description
• The world’s first SKAA Pro battery subwoofer for mobile PA
• Designed by Dillinger Labs in Canada
• Works with all SKAA Transmitters, all SKAA Pro Transmitters, and all SKAA Nadja Hubs including Soundboks 3, 4 and Go
• Pro-grade SKAA wireless audio. 100% Bluetooth-free. 100% WiFi free.
• Use up to 4 SKAA receivers (any combination of Death from Below and any other SKAA receivers) at the same time with any one SKAA transmitter
• Remembers up to 10 of your favourite transmitters
• Low latency — great for live performance
• 5 EQ presets, easily selectable by the user at any time from the front panel
• 2 x 8” woofers optimized for subwoofer bass frequencies and battery operation
• Includes 1 3/8" Pole bushing for getting your gear off the ground
CONNECTIVITY
• Inputs: SKAA / SKAA Pro (auto switching; automatically follows the transmitter class)
• Works with all SKAA/SKAA Pro sources including Dani Pro transmitters and all SKAA Hub speakers (for example, Soundboks 3, 4, & Go)
• Wireless Range: Up to 50-meter reliable range (actual range will depend also on the antenna implementation in the transmit-side device)
AUDIO
• Woofer: 2 x 8" Low Frequency Drivers, each with dedicated amplifier
• Amplifier Type: Multilevel Class D x 2
• Amplifier Power: 144 WRMS (2 x 72W Infineon Merus Ultra-Efficient Multi-Level D-amps)
• Amp Heat Sink: direct connect 215 x 130 x 3 external aluminum plate
• Acoustical Max Level: 122dB
• Volume: 30-step local control plus global control
• Punch Enhancement: 3 x Film Capacitors + 5 x Low ESR Electrolytic Capacitors
• 6 EQ Presets (with 1 tuned specifically for popular Soundboks full-range speakers)
• Dual Bass Reflex Ports
• DSP: Analog Devices DSP provides filtering, EQ and pop-free live switching of user EQ presets
• SNR: 91dB A-weighted
• Frequency Response @ 3dB: 25Hz - 180Hz
INTERFACE
• Power/Gear button
• Power LED
• Bond Button
• Bond Indicator
• 30-step Volume rotary encoder
• Battery Fuel Gauge (5 LED stack)
• EQ preset select (Wide, Outdoor, SB++, Punch, Tight, Bottom)
• Audio Routing select (L, R or Mono Mix)
• Time Alignment select (Phase Flip, 2ms, 4ms, 7ms, 11ms delays)
• Works with (optional) SKAA cmd (free app) when used with Diz, Ursula, and Cassandra Transmitters
POWER
• Internal Battery: 115 Wh, 12-cell 18650 Li-ION
• Battery Life: Up to 40 Hours at regular listening volume
• Charge Time: Charge from empty to full in 2.5 Hours
• Brick Power Supply: 26V 125W (included)
• Charge the battery and play DFB at full volume at the same time
CABINET
• Build: 12mm (1/2") Birch Plywood
• Pole Bushing: 1 3/8" (35mm) x 4" deep welded steel (pole not included)
• Weight: 15.5 kg (34 pounds)
• Dual monkey grip handles
• Self-levelling honeycomb-cell soft rubber feet x4
• Rear wall rubber feet x4
• Dimensions (without feet):25 × 61.7 × 47.5 cm (H × W × D)
9.8 × 24.3 × 18.7 inches (H × W × D)
• Dimensions (with feet):
27.4 × 61.7 × 49.5 cm (H × W × D)
10.8 × 24.3 × 19.5 inches (H × W × D)
