REVERSE CAMERA DNA CMOS TO SUIT TOYOTA HILUX
Description

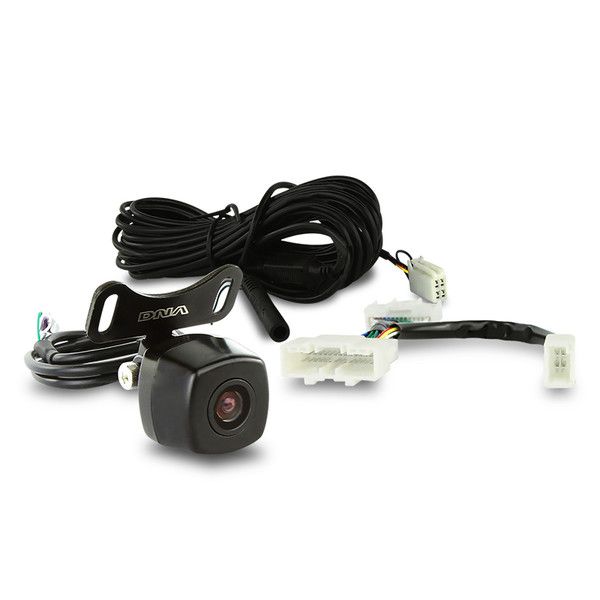

CMOS Reverse Camera With Butterfly Mount And Harness Kit To Suit Toyota Hilux Vehicles From June 2020 Onwards
Updated Design - As of December 2022 this kit now includes a 4 pin adaptor harness for use with Toyota Hilux vehicles dated 2005 to early 2020.
Suits:
Toyota Hilux June 2020 Onwards.
Use main harness and connect to the camera extension cable.
Plugs into the passenger side footwell.
Toyota Hilux June 2014-2020 Early (Jan-May 2020).
Use main harness with 4 pin adaptor harness and connect to the camera extension cable.
Plugs into the passenger side footwell.
Toyota Hilux June 2005-2013. (use 4 pin adaptor harness and connect to the camera extension cable).
Plugs into the back of the OEM Toyota head unit that has the 4 pin camera input socket.
Installation:
This reverse camera and harness kit is designed for plug and play DIY installation in Toyota Hilux vehicles without the need of cutting or soldering any wires.
It allows easy installation and integration of a reverse camera to the OEM factory Toyota Hilux screen.
The camera is then simply mounted in the factory location or under the tray.
Refer to included instruction manual for installation instructions of your year range Toyota Hilux vehicle.
Camera Strengths:
Heavy Duty Robust Design
Zinc Alloy Housing
PAL / NTSC Selectable* (By default set to PAL. To select NTSC cut the wire)
Parking Guide Lines*
Mirror Image*
Plug and play DIY installation with harness
Features:
Includes selectable options: PAL/NTSC video format, parking guide lines and reverse mirror imaging.
Camera also includes butterfly mount and has a Waterproof IP68 rating.
Ideal for 4WD and or trade vehicles that get knocked about where a tough camera is needed.
Plug and play DIY installation with harness
Selectable features:
PAL/NTSC format (Purple wire): By default is set to NTSC format for Toyota OEM head units.
Image Control (Green wire): By default is set for rear camera installation. (Cut wire to change image for front camera installation)
Parking Line (White wire): By default is set to show parking lines. (Cut wire to turn off)
Specifications:
Image Sensor: CMOS
Video System: PAL or NTSC (Selectable)
Scanning area: 4.88mm*3.67mm
Resolution: 976(H)*592(V)
Horizontal Resolution : 700 TVL
Electronic Shutter: 1s-1/10000(S)
SNR: =45.0dB
Min Illumination: 0.01Lux
Video Output: 1.0V±0.5Vp-p 75O
View Angle: 170°
Working Voltage: DC9V-15V±0.5V
Consumption: 100mA±10%
Waterproof Rating: IP68
Camera Body Size: 28mm W x 22mm H x 22mm D
Butterfly Base Size: 44mm L x 18mm W
Packaging: DNA Gift box with sleeve
