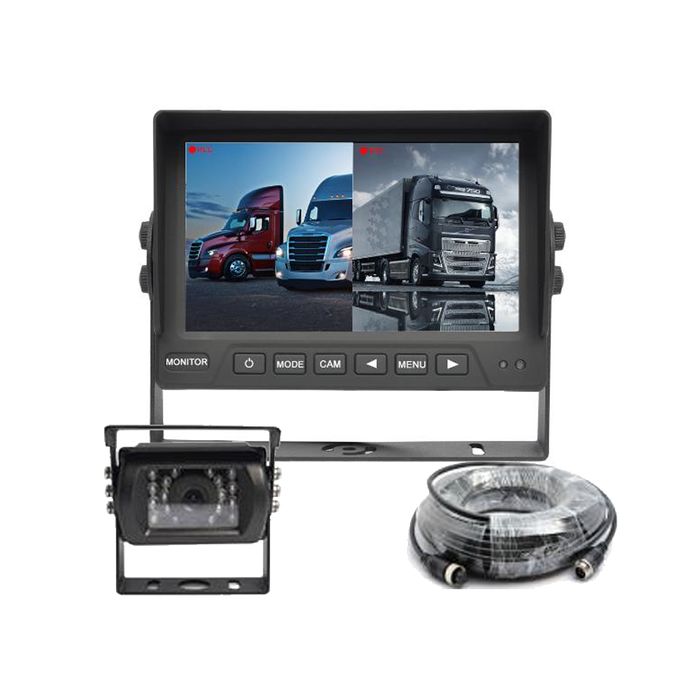

AVS SAFETY DVR BUNDLE WITH COMMERCIAL GRADE 7" LCD MONITOR & AHD CAM + 20M CABLE
Description
System Specifications:
Parking line on/off: Yes
Mirror/Normal Image Switch: Yes
Image Flip/Inversion: Yes
Recording: Yes, up to 128G SD Card
Power consumption: <5W
Power voltage: DC 12-36V
Features:
*Rubber surface finished and modified
button to provide better touching.
* EMC treatment: Bold and thick wire
modification and copper powder treatment in
monitor to provide better signal and antiinterference.
*Certification: ECE R10, CE, RoHs, IP69K
Monitor Specifications:
Type: IPS LCD
Size: 7 inch
Resolution : 1024*600
Brightness: LED, 500cd/m²
AV input: 2 channel split view (AHD/CVBS compatible)
Viewing angle: UP—85°,DOWN—85°,LEFT—85°,
RIGHT—85°
Operating temperature: -40°C to +85°C
Camera Specifications:
Image sensor: 1/4'' HD CMOS
Resolution: 720P
Pixel: 1280(H) x 720(V)
Lens Angle: 150° diagonal
Signal system: NTSC/PAL
Number of IR lights: 18pcs/6pcs
Minimum illumination: 0 lux(LED ON)
Waterproof grade: IP69K
Infrared LED Range: 8m
S/N Ratio: 48 db
Electronic Shutter: AUTO/ 1/50(1/60)-1/100,000se
Packing details:
1pc/box, 8pcs / carton
GW/ctn: 16.2kg/carton
carton size: 48*34*24cm
