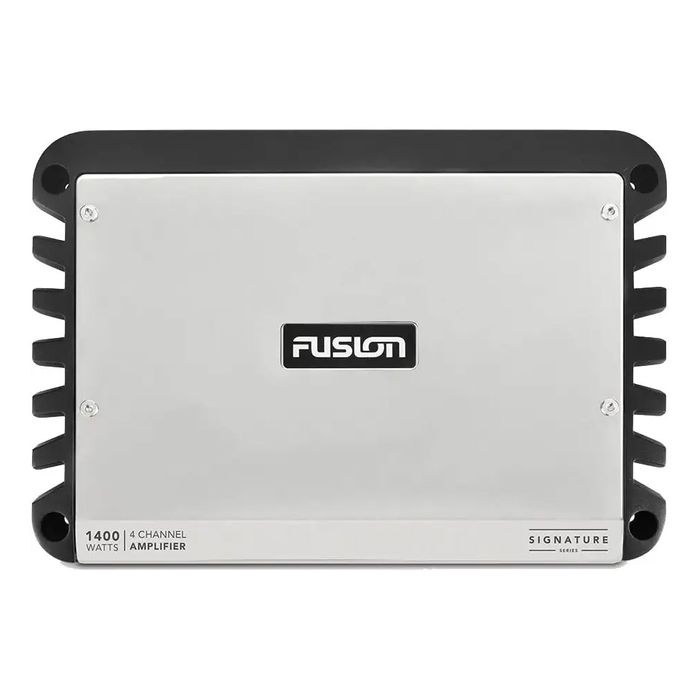

FUSION SG-DA41400 4 CHANNEL SIGNATURE SERIES AMPLIFIER D-CLASS
Description
Signature Series Marine amplifiers are designed and engineered for the harsh Marine environment
A high efficiency 1400 Watt amplifier design which ensures low battery drain with a high output
This delivers increased power to the connected speakers and/or subwoofers, extending your audio entertainment experience to a whole new level
1-piece heavy-duty die cast chassis, 5-way circuitry protection - thermal/reversed power polarity/DC offset protection/high + low voltage
Product Key Features:
Signature Series Marine amplifiers are designed and engineered for the harsh Marine environment
A high efficiency 1400 Watt amplifier design which ensures low battery drain with a high output
This delivers increased power to the connected speakers and/or subwoofers, extending your audio entertainment experience to a whole new level
1-piece heavy-duty die cast chassis, 5-way circuitry protection - thermal/reversed power polarity/DC offset protection/high + low voltage
Specifications:
Total rated power output - 4 Ohm (Watts) - 4 channel: 150 W RMS x 4 @ 14.4 V input - 4 Ohm < 1% THD
Total rated power output - 2 Ohm (Watts) - 4 channel: 220 W RMS x 4 @ 14.4 V input - 2 Ohm < 1% THD
Total rated power output Bridgede (Watts) - 4 channel: 440 W RMS x 2 @ 14.4 V input - 4 Ohm Bridged < 1% THD
Input sensitivity - 0.3 V - 8 V RMS (user adjustable)
High-pass/low-pass full range filter Yes (user selectable)
HP variable crossover frequency 4/5/6/8 channels and 24-Volt 6 channel: 32 Hz - 320 Hz
LP variable crossover frequency 4/5/6/8 channels and 24-Volt 6 channel: 32 Hz - 320 Hz
Operating voltage Monoblock and 4/5/6/8 channels: 10.8 V - 16 V DC
Current consumption (Max) 4/5 channels: 80 A
Fuse rating 4/5 channels: 2 x 40 A ATC blade-type (SAE J1171 compliant)
Operating temperature range 32° to 122° F (0° to 50° C)
Warranty 3 years
