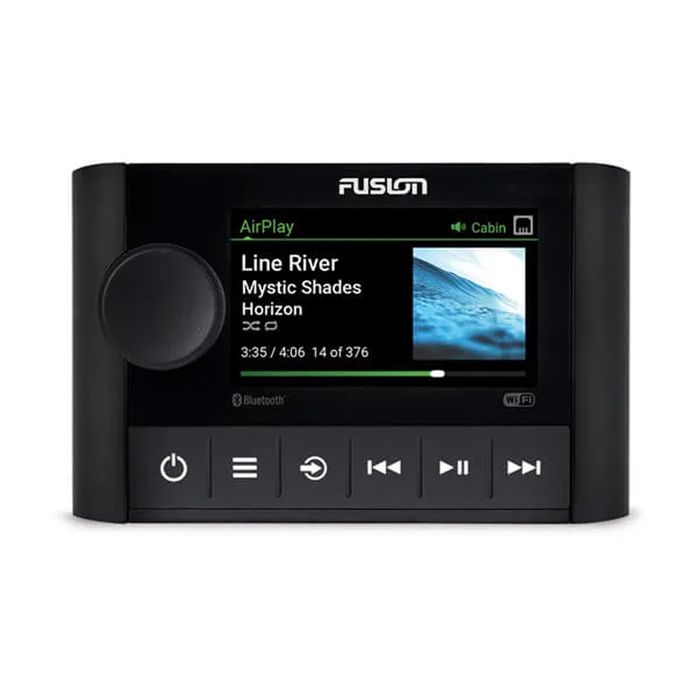

FUSION APOLLO SRX400 MARINE ENTERTAINMENT SYSTEM WITH DSP
Description
THE APOLLO RA770 STEREO’S PERFECT COMPANION
A perfect companion to Apollo RA770, the Apollo SRX400 zone stereo combines premium design and superior sound in a compact form factor.
• Custom audio profiles for each zone on your boat to deliver superior quality audio.
• Audio streaming with Wi-Fi technology provides high-quality audio with a faster data transfer rate.
• Experience seamless high-quality audio streaming from your music app via the AirPlay® 2 software feature.
• Enjoy the freedom of musical choice with Fusion PartyBus™-Network technology.
• Control your music from a compatible multifunction display (MFD), smart device or Garmin watch.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the Apollo SRX400 stereo has an IPX6 and IPX7 rated water-resistant front panel and has been tested to a high level of protection against salt, fog, temperature, vibration and UV.
MODERN DESIGN AND AESTHETICS
Providing uniformity across the helm, the brilliantly designed black front face blends seamlessly into black glass panels, complementing other electronics and MFDs for a tidy, uniform and elegant installation.
General
Physical dimensions Stereo dimensions (H x W x D): 70 x 110 x 122 mm
Weight 340 g
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 0° to 50° C
Current (max.) 8 A
Bluetooth wireless range Up to 10 metres)
Wireless frequencies/protocols Wi-Fi 2.4 GHz @ +15 dBm nominal
Bluetooth 2.4 GHz @ +10 dBm nominal
Compass-safe distance 100 mm
Stereo features
Display 2.7-inch optically bonded colour LCD
Built-in amplifier Class-D (2 Ohm stereo-stable)
Peak power 140 W
Rated power output (2 Ohm) 43 W rms x 2 @ 14.4 V input < 10% THD
Rated power output (4 Ohm) 26 W rms x 2 @ 14.4 V input < 10% THD
Built-in Digital Signal Processing Yes (with preconfigured DSP profiles)
t*{v5}PartyBus™-Network capabilities Yes (wired or wireless)
Fusion-Link™ control Yes (with MFD and smartphone)
Multi-Zone™ technology 1 zone
Built-in Wi-Fi Yes
Bluetooth wireless technology Yes
Multi-language interface Bulgarian / Chinese (Simplified) / Chinese (Traditional) / Croatian / Czech / Danish / Dutch / English / Finnish / French / German / Greek / Italian / Japanese / Korean / Norwegian / Polish / Portuguese (BR) / Portuguese (PT) / Slovenian / Spanish / Swedish / Thai / Turkish
Software updates Over-the-air software updates via the Fusion-Link app
Warranty 3 years
Sources
Sources AM / FM / Bluetooth / Apple AirPlay 2 / UPnP
Connectivity
Ethernet One Ethernet port
AM/FM radio One Motorola antenna connector port
Speaker 2 x speaker connections (1 zone amplified)
RCA Pre-out (left, right and subwoofer) 1 zone (requires external amplification)
Line out 1 (1 x L + R per zone, requires external amplification)
Subwoofer out 1 x mono output (requires external amplification)
Downloads
You may also like
-

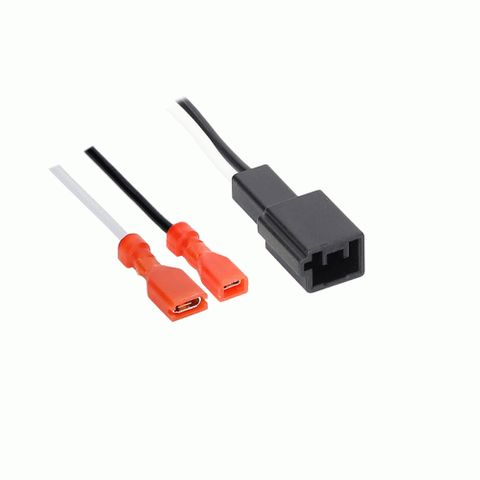

CONNECTS2CTSVX002.2$135.18 inc GST
-
-
-
