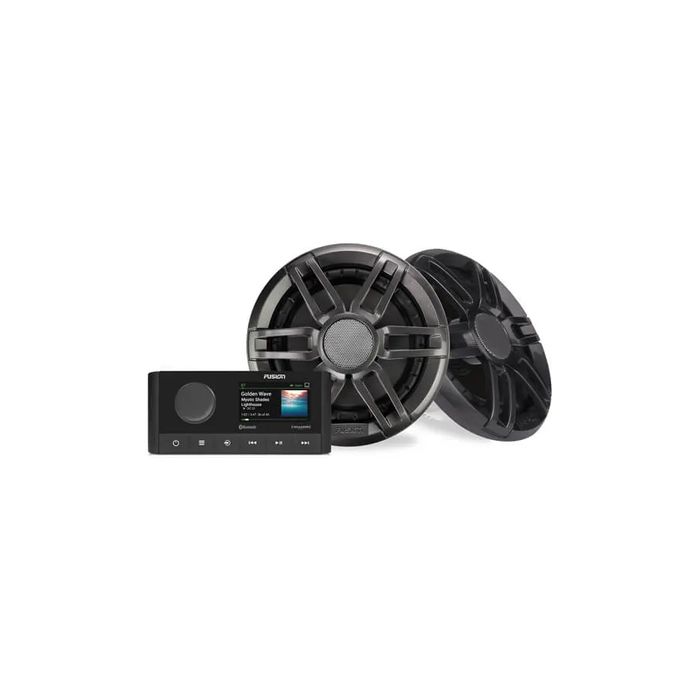

FUSION MARINE STEREO KIT MS-RA210 WITH XS SPORTS SPEAKERS
Description
Outfit your boat with an exceptional sound system at an outstanding value. A Fusion® MS-RA210 marine stereo and speaker kit will put the perfect soundtrack at your fingertips.
- Enjoy your music ASAP. Your marine stereo and both speakers come ready to install
- Easily control music from your compatible Garmin MFD1, smart device or Garmin watch
- Built-in Class D amplifier brings aboard higher efficiency and greater output
- Multi-Zone™ Technology makes you the captain of two separate audio zones
- Conveniently update software via Bluetooth® technology2 from the Fusion-Link™ app on your compatible smart device
- Grow your audio system with compatible Fusion speakers, subwoofers and amplifiers
Physical dimensions (HxWxD) : 2.68" x 6.18" x 4.99" (68 x 157 x 126.6 mm)
Weight MS-RA210: 12.4 oz (350 g)
Water rating IPX6 and IPX7 (front panel only, when properly installed)
Power input 10.8-16 VDC
Operating temperature range 32° to 122° F (0° to 50° C)
Current (max.) 15 A
NMEA 2000® LEN 1 (50 mA)
Bluetooth® wireless range Up to 30 ft (10 metres)
ANT wireless range Up to 10 ft (3 metres)
Wireless frequencies/protocols Bluetooth 2.4 GHz @ +12 dBm nominal
ANT 2.4 GHz @ +7 dBm nominal
Compass-safe distance 5.9" (150 mm)
Display 2.7" optically bonded colour LCD
Built-in amplifier Class-D (minimum 4 Ohm impedance)
Peak power 200 W
Rated power output (4 Ohm) 26 W rms x 4 @ 14.4 V input < 10% THD
Fusion-Link™ control Yes (with MFD, smartphone and Garmin watch)
Built-in Digital Signal Processing Yes (with preconfigured DSP profiles)
Multi-Zone™ technology 2 zones
Bluetooth wireless technology Yes
ANT wireless technology Yes
DAB+ ready Yes (requires DAB100A antenna module)
SiriusXM-ready Yes (requires SiriusXM Connect vehicle tuner)
Multi-language interface Bulgarian, Chinese (Simplified/Traditional), Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (BR/PT), Slovenian, Spanish, Swedish, Thai, Turkish
NRX remote compatibility yes
Software updates USB
Warranty 1 year
Sources MS-RA210: AM/FM/Bluetooth/USB audio/iPhone/iPod/AUX x1/MTP/SiriusXM-Ready (USA only, requires optional SiriusXM Connect vehicle tuner)/DAB+ ready (available in Europe and Australia only)
Auxiliary input One RCA input (AUX)
NMEA 2000 1 port
USB 2.0 MS-RA210: 1 port
SiriusXM satellite radio 1 port (requires SiriusXM Connect vehicle tuner, does not support traffic and weather)
AM/FM radio One Motorola antenna connector port
Speaker 4 x speaker connections (2 zone amplified)
RCA Pre-out (left, right and subwoofer) 2 zones (requires external amplification)
Line out Zone 1, Zone 2 (1 x L + R per zone, requires external amplification)
Subwoofer out Zone 1, Zone 2 (requires external amplification)
Speaker Specifications
Physical dimensions (HxWxD)
XS Sports Speaker: 6.97" x 3.27" (177 x 83 mm)
Water rating IP65
Configuration Coaxial
Speaker size 6.5"
Peak power (Watts) 200 W
RMS power (Watts) 50 W
Sensitivity (1 watt/1 metre) 91 dB
Frequency response 80 Hz-18 kHz
Nominal impedance 4 ohm
Recommended amplifier power (RMS) 20-150 W/Ch
Operating temperature range 32° to 122° F (0° to 50° C)
Voice coil diameter 1.18"
Cone material Polypropylene cone with cloth surround
Tweeter type Aluminium dome
Compass-safe distance 122" (310 cm)
Mounting diameter clearance 5.31" (135 mm)
Mounting depth clearance 2.64" (67 mm)
Sealed enclosure volume 0.28 cubic ft (8 L)
