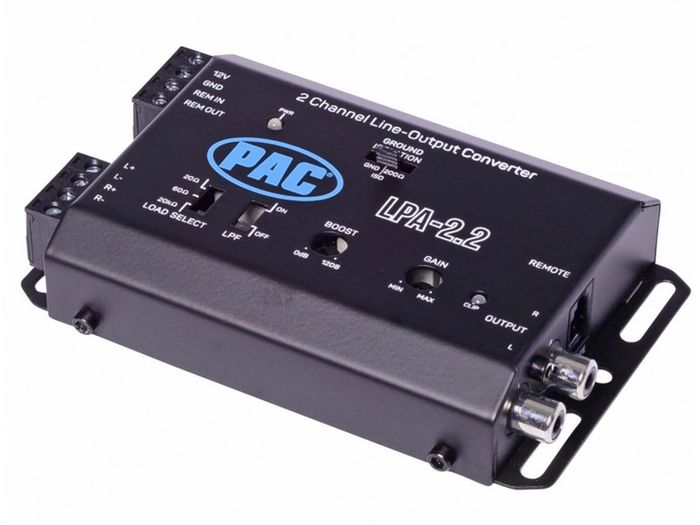

PAC 2 CH ACTIVE LINE OUT CONVERTER WITH AUTO TURN ON FOR AMP INSTALLATION 40V / 400W
Description
The LPA-2.2 LOCPRO Advanced is a 2 channel, 40V input, digital line output converter which can be used when installing (or retaining) an amplifier to an audio system that does not have RCA ouputs. The LPA-2.2 benefits from noise isolation countermeasures, 12dB bass boost, single stereo gain controls, a steel housing, as well as an automatic turn on function. Additionally, the LPA-2.2 can also be controlled via a dedicated remote control (see LPA-REM, sold separately).
Features & Benefits
2 Inputs - 2 Outputs
Steel housing
40V / 400W maximum @ 20kO
Low pass filter (CH3/4 only)
Bass boost (CH3/4 only)
Single Stereo Gain controls
Wide range DC offset
Selectable ground (common, ISO or 200O)
Load selections: 20O, 60O, 20KO
Clip indicator
Turn-on mode selection (remote and DC)
9.5V Output voltage
Removable quick-connect with screw-type terminal
