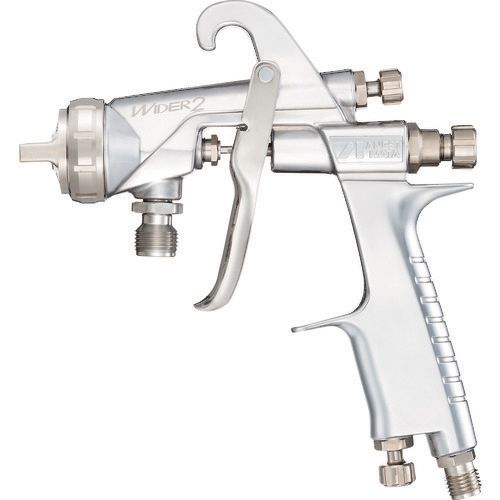

IWATA SUCTION SPRAYGUN WIDER2
Description
Dependable Quality and Repeatability
From "W" to "WIDER" again - the new model has arrived.
The key point in industrial coating products are quality and repeatability.
We have always created the ideal spray guns, adapted to diverse applications and evolving paints. Now, we have developed the new WIDER1 and WIDER2 models, which go further than ever in our pursuit of these key point. Our spray guns have penetrated markets around the world since the W-200 make it's debut 22 years ago, and W-101 14 years ago. We have distilled this experience and expertise that we accumulated over those years into this new WIDER model.
FEEL
Linear Response Pattern Adjustment set
The previous pattern adjustment set reached around 45% of full pattern width with 1 turn, around 80% with 1.5 turns, and almost 100% or nearly fully open with 2 turns. Our newly-developed pattern adjustment set now provides around 35% with 1 turn, around 50% with 1.5 turns, and around 70% with 2 turns. This linear response to adjustment is intuitively easier to operate.
REPEATABILITY
Revised Air Valve Seat Sets for a more consistent installation
Previous air valve seat sets consisted of a combination of large and small orifices in the air channel, so installing it into place could produce differences in air volume due to its’ position. This difference could potentially influence paint output and pattern width. We revised the design for the new WIDER, making the orifices much larger and more uniform so that installing the air valve seat set in produces more repeatable results. That enables even more consistent application.
| Previous Model | New Model | Type of Feed | Fluid Nozzle Diameter (Fmm) | Atomizing Air Pressure (MPa) | Air Consumption (L/min) | Fluid Output (mL/min) | Pattern Width (mm) | Atomization | Air Cap | Weight (g) | Application |
|---|---|---|---|---|---|---|---|---|---|---|---|
| W-200-122P | WIDER2-12G2P | Pressure | 1.2 | 0.29 | 500 | 500 | 400 | High atomization | G2P | 375 | Large parts and vehicles, line painting |
| W-200-151S | WIDER2-15K1S | Suction | 1.5 | 0.29 | 200 | 240 | 210 | General atomization | K1 | 375 | Wood and furniture, metals |
| W-200-152S | WIDER2-15K2S | Suction | 1.5 | 0.29 | 330 | 240 | 290 | High atomization | K2 | 375 | Automotive refinishing, Wood and furniture, plastics |
| W-200-182S | WIDER2-18K2S | Suction | 1.8 | 0.29 | 330 | 290 | 340 | High atomization | K2 | 375 | Automotive refinishing, Wood and furniture, plastics |
| W-200-201S | WIDER2-20R1S | Suction | 2 | 0.29 | 260 | 350 | 260 | General atomization | R1 | 375 | Metals, Wood and furniture, medium-viscosity paints |
| W-200-202S | WIDER2-20R2S | Suction | 2 | 0.29 | 360 | 350 | 290 | High atomization | R2 | 375 | Metals, Wood and furniture, medium-viscosity paints |
| W-200-251S | WIDER2-25W1S | Suction | 2.5 | 0.29 | 360 | 440 | 280 | General atomization | W1 | 375 | Metals, Wood and furniture, anti-corrosion treatment for steel frames, high-viscosity paints |
